IsoJar®

IsoJar

For collecting drill cuttings that have traditionally been sampled into paint cans, we have developed the IsoJar; constructed of a durable, clear plastic. After extensive testing, we have found there is very little change in the compositional data and no change in the isotopic data of gases contained in IsoJars compared to leakage associated with using amber glass bottles for sampling.

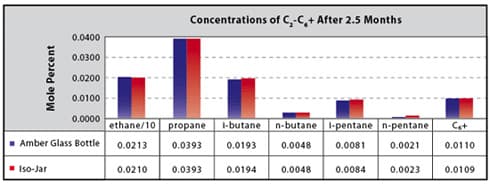

Graph showing concentrations of C2-C4+ after 2.5 months

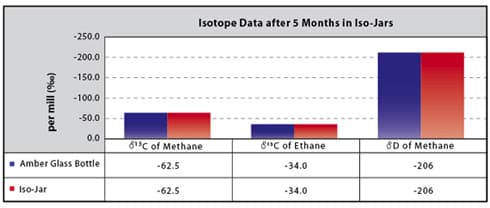

Graph showing isotope data after 5 months in IsoJars

Sample and Jar Storage

IsoJar Sampling Instructions (PDF)

IsoJar Sample Log Sheet
